Commercial Peanut Butter Machine | Peanut Butter Colloid Mill
Model | TZ-130 |
Capacity (KG/H) | 200-300 |
Power (KW) | 11 |
Machine Size (MM) | 1000*350*1000 |
Weight (KG) | 270 |
You can now ask our project managers for technical details
The commercial peanut butter machine is a wet ultra-micro-processing equipment suitable for a wide range of materials, integrating the functions of crushing, dispersing, emulsifying and homogenizing.
This equipment adopts adjustable speed motor, which can flexibly adjust the rotating speed according to different material characteristics, and the degree of refinement can reach 125-150 mesh, and the homogenization rate is as high as 95%.
With its excellent performance and diversified applications, it has been widely used in food, pharmaceutical, daily chemical, chemical and other industries, is the ideal choice of fine processing equipment.

Peanut butter colloid mill application
- Food industry: processing peanut butter, sesame paste, almond paste, chili sauce, ketchup, sauces, soybean milk, dairy products, beverages and so on.
- Pharmaceutical industry: it is suitable for preparing syrups, nutritional solutions, herbal creams and plant extracts.
- Daily chemical industry: it can be used in the production of toothpaste, cosmetics, detergents and other daily necessities.
- Chemical industry: widely used in emulsification and homogenization of industrial materials such as pigments, dyes, paints, lubricants, petroleum catalysts, etc.
- Nut butter field: not only limited to the production of peanut butter, but also can efficiently process other nut butter products such as almond butter, cocoa butter and so on.

Highlights of commercial peanut butter machine
- Advanced technology: adopting the latest wet granule processing technology, the finished product is fine and even with excellent quality.
- Compact structure: reasonable body design, small footprint, the smallest model is only 650 × 320 × 650mm, suitable for a variety of production environments.
- Safe and hygienic: the whole commercial peanut butter machine is made of 304 stainless steel, which meets the food safety standards and is easy to clean, guaranteeing the production hygiene.
- Efficient production: high output, can produce 200 to 6000 kilograms of peanut butter per hour, to meet the needs of different scales of production.
- Complete models: provide a variety of models to choose from, from small workshops to large peanut butter production line can be adapted.

Industrial nut butter machine structure
The commercial peanut butter machine consists of a base, a hopper, fittings for cooling water, a regulating plate, and a discharge port. The inlet, outlet, and cooling water fittings are all crafted from high-quality stainless steel, making the machine sturdy and resistant to wear.
Additionally, to achieve a smoother consistency in the peanut butter, a grinder can be added. With double grinding, the peanut butter will have an even finer texture.

Nut butter grinder machine parameters
Model | Capacity (KG/H) | Power (KW) | Machine Size (MM) | Weight (KG) |
TZ-70 | 50-80 | 2.2 | 650*320*650 | 70 |
TZ-85 | 100-150 | 5.5 | 900*350*900 | 170 |
TZ-130 | 200-300 | 11 | 1000*350*1000 | 270 |
TZ-185 | 500-800 | 30 | 1200*450*1200 | 470 |
TZ-200 | 600-1000 | 37 | 1200*500*1200 | 500 |
How to make peanut butter quickly?
- The commercial peanut butter machine features two grinding disks: one is stationary while the other spins at high speed, and the space between them can be adjusted.
- Once the raw material is fed into the machine, the fixed wheel begins to rotate, grinding and pulverizing the ingredients to achieve the desired consistency.
- As the process continues, the raw materials are moved back and forth, and through high-frequency vibrations and high-speed eddy currents, they transform into a smooth sauce.
During operation, the temperature of the raw materials can rise to between 80 and 85 degrees. To help manage this heat, it’s advisable to install a cooling tube. Additionally, the gap between the stator and rotor can be adjusted to create a paste with the desired texture.
Peanut butter production line
Peanut butter has become a widely loved product today. With its rich flavor and impressive nutritional benefits, it stands out as an excellent condiment. Packed with protein and various vitamins, it promotes health and nourishes the skin, making it an ideal choice for people with busy lifestyles.

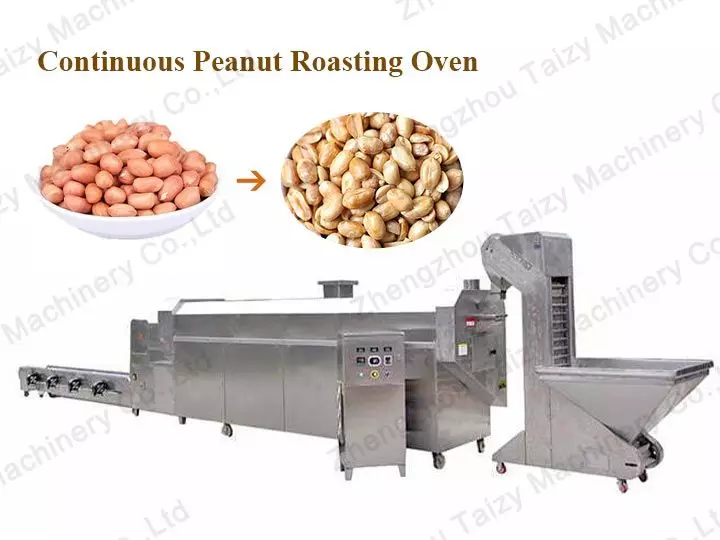

The peanut butter processing line primarily includes a peanut roaster, conveying equipment, peeling machine, sorting equipment, grinding machine, fine grinding equipment, cooling equipment, and filling equipment. (Read more: 200kg/h Peanut Butter Production Line | Peanut Butter Processing>>)
This setup features assembly line operations, a high level of mechanization, and exceptional reliability. It ensures airtight production with no pollution, allowing the peanut butter produced to meet export standards.
How much is a peanut butter grinding machine?
The price of a commercial peanut butter machine can vary based on several factors. Firstly, the machine’s output plays a significant role; machines with lower output tend to be less expensive than those designed for higher output.
Additionally, the quality of the peanut butter produced is often linked to the machine’s price. If you’re simply looking to make peanut butter, you can find a more affordable option. However, if you desire a smoother, finer peanut butter, expect to pay more, as this typically involves an additional grinding process.

Lastly, the distance from the supplier can also impact the overall cost of the machine. It’s important to inquire about these details to ensure you choose the right commercial peanut butter machine for your needs. Don’t hesitate to reach out to us anytime.
